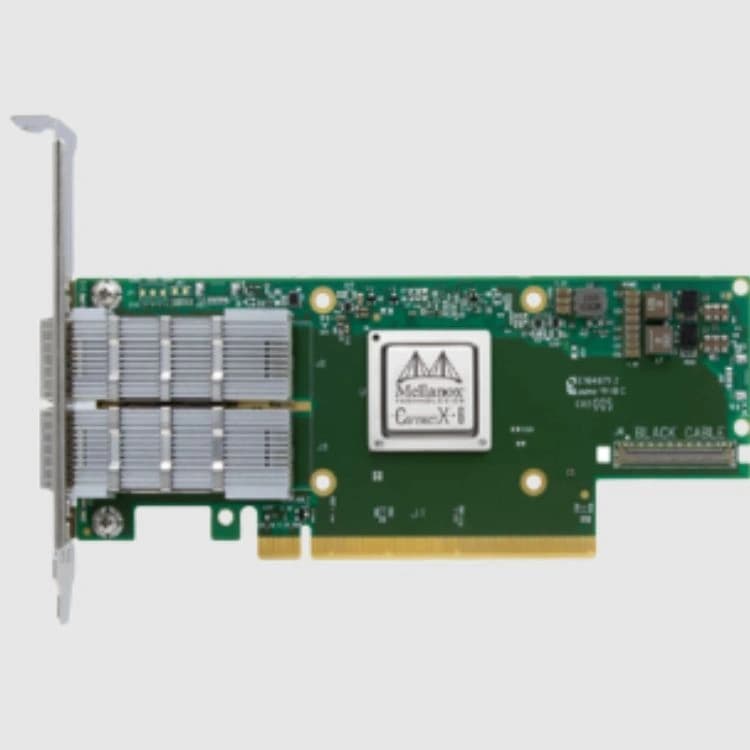

Mellanox ConnectX-6 MCX653105A-HDAT
The Mellanox ConnectX-6 MCX653105A-HDAT is a high-speed InfiniBand/Ethernet network adapter card designed for data centers, HPC, AI, cloud, and demanding networking environments. It supports up to 200Gb/s Ethernet and HDR InfiniBand connectivity, with PCIe Gen3/Gen4 x16 support and QSFP56 connectivity for high-bandwidth network deployments.
Specification | Details |
|---|---|
Model | Mellanox MCX653105A-HDAT |
Product Type | InfiniBand / Ethernet Network Adapter |
Maximum Data Rate | Up to 200Gb/s |
InfiniBand Support | SDR, DDR, QDR, FDR, EDR, HDR100, HDR |
Ethernet Support | 1/10/25/40/50/100/200GbE |
Connector | QSFP56 |
PCIe Interface | PCIe Gen3/Gen4 x16 |
Typical Power | 23.6W with passive cables |
Operating Temperature | 0°C to 55°C |
Humidity | 10%–85% RH operating |
