MPN: R-FC120-BKAMN1-G-1

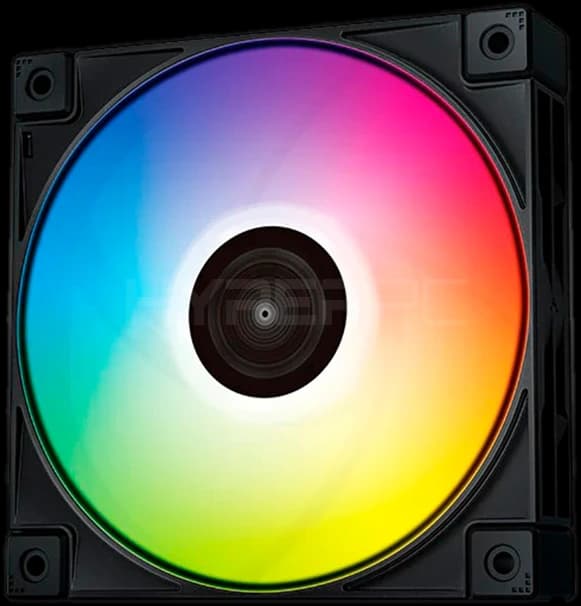

DeepCool FC120 Performance A-RGB PWM Fan

Highlights

•Fan Dimensions: 120 × 120 × 25 mm

•Bearing Technology: High-durability Hydro Bearing

•Blade Composition: High-strength Polybutylene Terephthalate (PBT)

•Speed Regulation: 500 ~ 1800 RPM ±10% via 4-pin PWM

•Max Volume Output: 61.91 CFM

•Max Air Pressure: 1.83 mmAq

•Peak Acoustics: ≤28 dB(A)

•Cable Management: Proprietary 6-pin daisy-chain interconnect

•Lighting Protocol: 3-pin 5V Addressable RGB (ARGB)

•Lighting Interface: Multi-motherboard sync software (ASUS, GIGABYTE, MSI, ASRock)

•Integrated Safety: Dedicated SATA power tap on main breakout cable

•Chassis Decoupling: Vibration-dampening rubber corner pads

Contact for pricing

Get a Quote

The DeepCool FC120 is a 120mm PWM case fan featuring customizable addressable RGB lighting and a smart daisy-chain cable design that eliminates interior wire clutter. Built with high-strength PBT blades and a durable hydro bearing, it delivers a balance of strong airflow, high static pressure, and quiet operation for efficient system cooling.

The DeepCool FC120 Performance A-RGB PWM Fan redefines case ventilation by pairing performance-driven thermal engineering with a highly optimized, builder-friendly installation process. Designed for PC enthusiasts, gamers, and system integrators alike, this 120mm cooling solution strikes an ideal balance between high-static pressure, high-volume airflow, and customizable aesthetics. Whether deployed as a high-density radiator companion or a high-efficiency chassis exhaust, the FC120 is engineered to maintain stable internal temperatures under heavy computing workloads.

Innovative Daisy-Chain Cable System

The defining feature of the FC120 is its revolutionary interconnect cable setup. Instead of routing two individual cables (PWM and ARGB) per fan back to independent splitter hubs, each fan links directly to the adjacent one using a single, proprietary 6-pin interconnect connector.

Reduced Clutter: A single breakout cable links up to four daisy-chained fans back to the motherboard.
Simplified Powering: The master breakout cable splits into a standard 4-pin PWM header for precise speed control, a 3-pin 5V ARGB header for lighting sync, and a dedicated SATA power connection directly from the PSU. This ensures safe, stable power delivery without exceeding the amperage limits of your motherboard headers.

Advanced Material Construction & Aerodynamics

Engineered for longevity and consistent operational dynamics, the FC120 features narrow bezels and precision-molded fan blades:

PBT Composition: The fan blades are constructed from premium Polybutylene Terephthalate (PBT) material. This choice optimizes structural rigidity, prevents fan blade distortion at high RPMs, and provides excellent wear resistance over years of service.
Hydro Bearing: Equipped with a precision hydro-dynamic bearing system, the fan minimizes internal friction, significantly extending its operational life while reducing low-frequency mechanical noise.
Vibration Dampening: Integrated rubber pads on the corners absorb micro-vibrations generated during high-speed rotation, preventing structural resonance through your PC chassis.

Vibrant Center-Hub ARGB Illumination

Aesthetics are driven by a cluster of ultra-bright, individually addressable RGB LEDs positioned directly within the fan’s central hub.

Even Light Dispersion: Light projects outward through custom-tailored, translucent fan blades, creating a seamless and bright glow across the rotating assembly without visible hotspots.
Onboard Preset Mode: For users without a compatible ARGB motherboard, the fan features an automated, plug-and-play lighting profile that works right out of the box using basic SATA power.
Motherboard Synchronization: Fully compatible with major motherboard ecosystem utilities—including ASUS Aura Sync, GIGABYTE RGB Fusion, MSI Mystic Light Sync, and ASRock Polychrome Sync—allowing you to synchronize your entire setup’s ambient lighting seamlessly.
