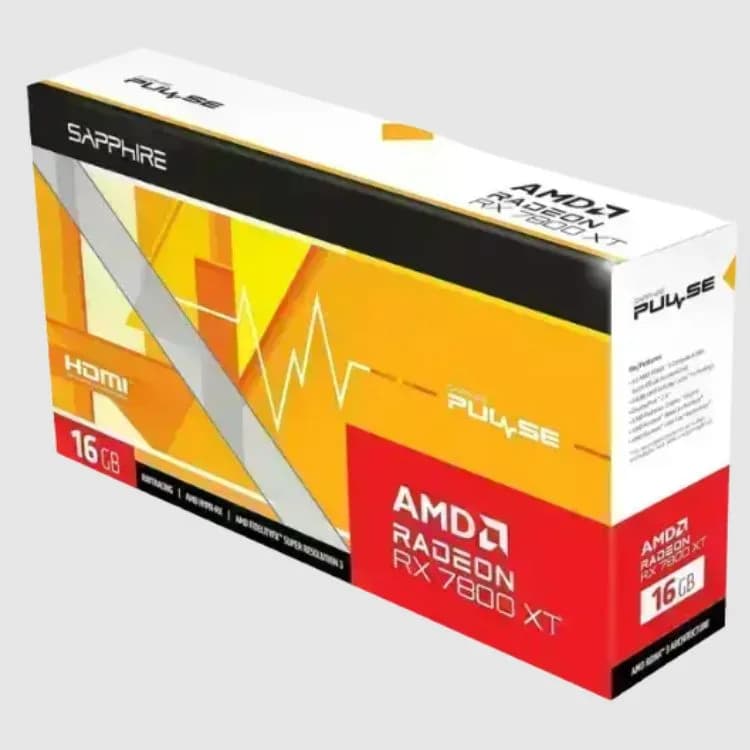

Sapphire Pulse AMD Radeon RX 7800 XT Gaming Graphics Card with 16GB GDDR6 | 11330-02-20G
GPU Architecture: AMD RDNA™ 3
Fabrication Process: 5nm
Stream Processors: 3840
Compute Units: 60 CU (with RT + AI Accelerators)
Ray Accelerators: 60
Infinity Cache: 64MB
Memory Size / Bus: 16GB GDDR6 / 256-bit
Memory Clock: 19.5 Gbps Effective
Interface: PCI-Express 4.0 x16
Displays: Maximum 4 Displays
BIOS Support: UEFI
Game Index: 4K
Power Consumption: 266W Total Board Power
Power Connectors: 2 x 8-pin Power Connector
Minimum Power Supply: 700W
Form Factor: 2.5 slot, ATX
Dimensions: 280mm (L) x 128.75mm (W) x 52.57mm (H)
Supported OS: Linux®, Windows® 10, Windows® 11 (64-bit)
Specification | Details |
|---|---|
GPU Architecture | AMD RDNA™ 3 |
Fabrication Process | 5nm |
Engine Clock | Boost Clock: Up to 2430 MHz |
Stream Processors | 3840 |
Compute Units | 60 CU (with RT + AI Accelerators) |
Ray Accelerators | 60 |
Infinity Cache | 64MB |
Memory Size / Bus | 16GB GDDR6 / 256-bit |
Memory Clock | 19.5 Gbps Effective |
Interface | PCI-Express 4.0 x16 |
Displays | Maximum 4 Displays |
Resolution | HDMI: 7680×4320 |
Output Ports | 2x HDMI |
BIOS Support | UEFI |
Game Index | 4K |
Cooling System | Dual-X Cooling Technology with 2 Fans |
Power Consumption | 266W Total Board Power |
Power Connectors | 2 x 8-pin Power Connector |
Minimum Power Supply | 700W |
Form Factor | 2.5 slot, ATX |
Dimensions | 280mm (L) x 128.75mm (W) x 52.57mm (H) |
Supported OS | Linux®, Windows® 10, Windows® 11 (64-bit) |
Cooling Features | Intelligent Fan Control |
AMD Smart Technologies | AMD Noise Suppression |
Other Features | Microsoft® DirectX® 12 Ultimate Support |
System Requirements | PCI Express® X16 lane |
