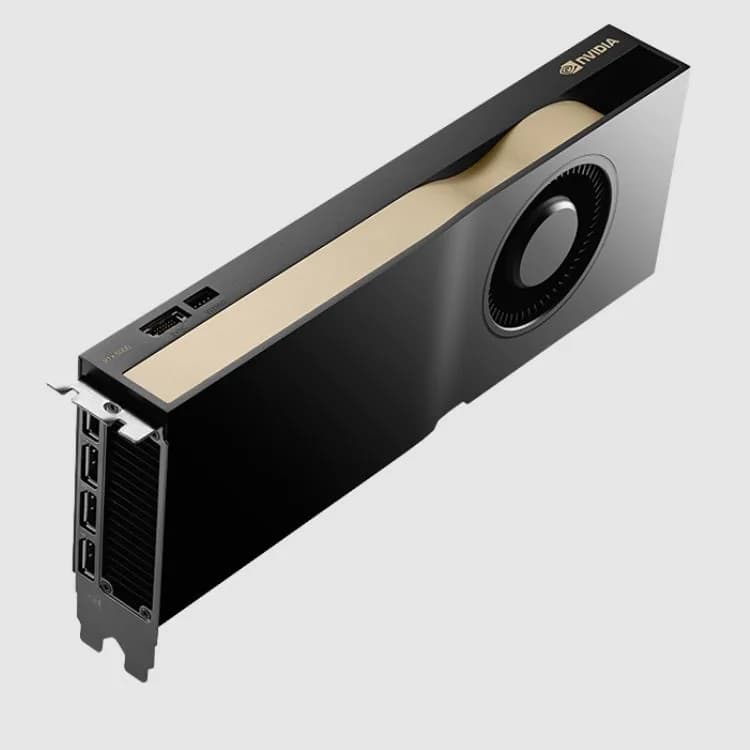

NVIDIA RTX 5000 ADA Generation PCIe 32GB 250W
Compatible in all systems that accept an NVIDIA RTX 5000 ADA
Specification | NVIDIA RTX 5000 Ada Generation |
|---|---|
Architecture | NVIDIA Ada Lovelace Architecture |
Foundry | Taiwan Semiconductor Manufacturing Company |
Process Size | 4 nm NVIDIA Custom Process |
Transistors | 76.3 billion |
Die Size | 608.4 mm² |
CUDA Parallel Processing Cores | 12,800 |
NVIDIA Tensor Cores | 400 |
NVIDIA RT Cores | 100 |
Single-Precision Performance¹ | 65.3 TFLOPS |
RT Core Performance¹ | 151.0 TFLOPS |
Tensor Performance¹ | 1044.4 TFLOPS² |
GPU Memory | 32 GB GDDR6 with ECC |
Memory Interface | 256-bit |
Memory Bandwidth | 576 GB/s |
Max Power Consumption | 250W |
Graphics Bus | PCI Express 4.0 x16 |
Display Connectors | DP 1.4a (4)³ |
Form Factor | 4.4″ H x 10.5″ L x Dual Slot |
Product Weight | 1079.7 g |
Thermal Solution | Blower Active Fan |
vGPU Software Support³ | NVIDIA Virtual PC/Virtual Applications (vPC/vApps), NVIDIA RTX Virtual Workstation (vWS)³ |
vGPU Profiles Supported | 1 GB, 2 GB, 3 GB, 4 GB, 6 GB, 8 GB, 12 GB, 16 GB, 24 GB |
NVIDIA 3D Vision® and 3D Vision Pro | Support via 3 pin mini DIN |
Frame Lock | Compatible (with Quadro Sync II) |
NVLink | Not Supported |
Power Connector | 1x 16-pin CEM5 PCIe |
NVENC | NVDEC | 2x | 2x (+AV1 Encode & Decode) |
The NVIDIA RTX™ 5000 Ada Generation GPU, powered by the NVIDIA Ada Lovelace architecture, unlocks breakthroughs in generative AI and delivers the performance required to meet the challenges of today’s professional workflows. With 100 third-generation RT Cores, 400 fourth-generation Tensor Cores, 12,800 CUDA® cores, and 32GB of graphics memory, the RTX 5000 excels in rendering, AI, graphics, and compute workload performance.
