Powered by the NVIDIA Blackwell architecture and DLSS 4
Core Clocks: Extreme Performance: 2497 MHz (MSI Center), Boost: 2482 MHz (GAMING & SILENT Mode)
TRI FROZR 4 Thermal Design: Upgraded fans, airflow control, and thermal design deliver superior cooling and quieter operation.
STORMFORCE Fan: Seven fan blades, claw texturing, and a circular arc are designed for optimal airflow with minimal noise.
Nickel-plated Copper Baseplate: Heat from the GPU and memory is swiftly captured by a nickel-plated copper baseplate and transferred.
Core Pipes feature a square design to maximize contact with the GPU baseplate for optimal thermal management.
Metal Backplate: A reinforcing metal backplate with airflow vents and thermal pads enhances cooling.
Wave Curved 4.0: Precision-engineered wave edges with a high-low fin design enhance airflow and reduce turbulence.
Air Antegrade Fin 2.0: The fins feature a V-shaped cutout and a high-low design at the airflow passthrough to optimize flow efficiency.
Dual BIOS gives you the choice to prioritize for full performance in GAMING mode or low noise in SILENT mode.

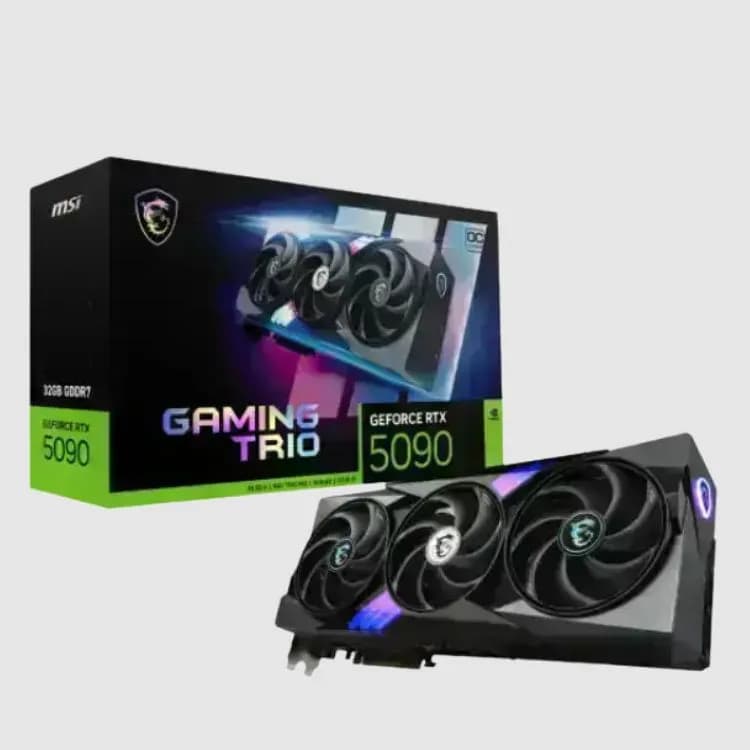

| GeForce RTX™ 5090 32G GAMING TRIO OC |
Model Name | G5090-32GTC |
Graphics Processing Unit | NVIDIA® GeForce RTX™ 5090 |
Interface | PCI Express® Gen 5 |
Core Clocks | Extreme Performance: 2497 MHz (MSI Center) |
CUDA® Cores | 21760 Units |
Memory Speed | 28 Gbps |
Memory | 32GB GDDR7 |
Memory Bus | 512-bit |
Output | DisplayPort x 3 (v2.1b) |
HDCP Support | Yes |
Power Consumption | 575 W |
Power Connectors | 16-pin x 1 |
Recommended PSU | 1000 W |
Card Dimension (mm) | 359 x 149 x 70 mm |
Weight (Card/Package) | 2119 g / 2735 g |
DirectX Version Support | 12 Ultimate |
OpenGL Version Support | 4.6 |
Maximum Displays | 4 |
G-SYNC® Technology | Yes |
Digital Maximum Resolution | 7680 x 4320 |
